1 x Infineon DD171N16K Dual Diode Module, Series, 1800V 170A, 3-Pin - Infineon
roll over the image to zoom in
£0.00
£112.99
RS 752-8296
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 58O
Infineon

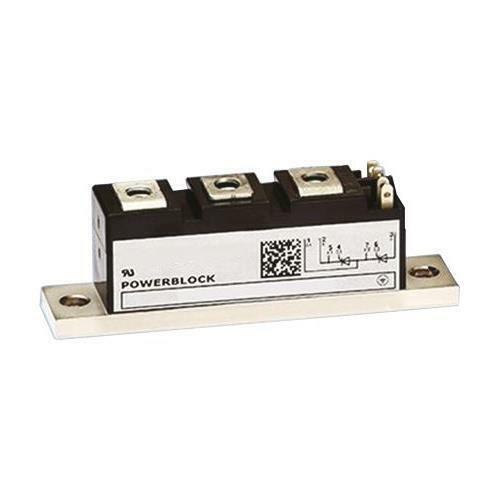

Infineon DD171N16K Dual Diode Module, Series, 1800V 170A, 3-Pin
- BMUK Part # :-752-8296
- BrandInfineon
- Mfr. Part No.DD171N16K
- You will get 1 Module
Product Details
Rectifier Diode Module, DD Series, Infineon
The Infineon PowerBLOCK Dual Diodes (DD Series) Rectifier Diode modules have configurations such as Fast diode, and Rectifier diodes. The pressure contact technology rectifier diode module ranges from 20mm up to 60mm, with voltage ranges up to 1800V and 600A current. The PowerBLOCK Rectifier diode has an electrical insulated base which consists of an isolated copper base plate. They can be used in power controllers, soft starter and drive applications.
PowerBLOCK Housing
Easy mounting
Pressure Contact technology
Fail safe / Short on fail - preventing arcing on fail
Diodes and Rectifiers, Infineon
Specifications
| Maximum Continuous Forward Current | 170A | |
| Diode Configuration | Series | |
| Number of Elements per Chip | 2 | |
| Peak Reverse Repetitive Voltage | 1800V | |
| Mounting Type | Panel Mount | |
| Diode Type | Silicon Junction | |
| Pin Count | 3 | |
| Maximum Forward Voltage Drop | 1.26V | |
| Length | 94mm | |
| Width | 34mm | |
| Height | 30mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 94 x 34 x 30mm | |
| Peak Reverse Current | 20mA | |
| Peak Non-Repetitive Forward Surge Current | 6.6A |
For a Specification PDF Please CLICK HERE
