1 x Honeywell PT1000 Sensor -200°C min +260°C max 2.18mm length 300mm long Cable - Honeywell
roll over the image to zoom in
£0.00
£14.99
RS 293-8402
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 29A
Honeywell
Honeywell PT1000 Sensor -200°C min +260°C max 2.18mm length
BMUK Part # :-293-8402BrandHoneywellMfr. Part No.HEL-705-U-0-12-00
Product Details

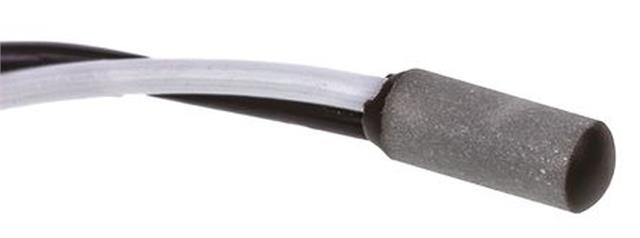

HEL 700 series Platinum RTD
Miniature Pt 1000 and Pt 100 ceramic-cased temperature probes.

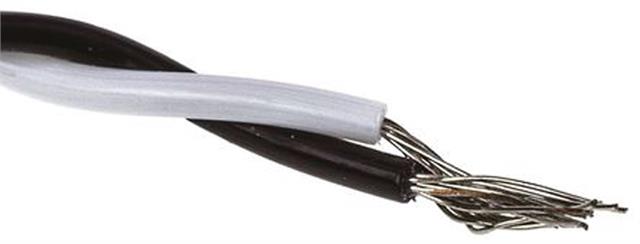

PTFE or fibreglass wired output.
Linear output.
Ref.:
HEL 705-U-0-12-00
Temperature range:–200 → +260°C
Wire type:PTFE
Dimensions (mm):2.18 x 4.75
Resistance at 0°C:1000Ω
Temperature coefficient:α= 0.00375 Ω/Ω/°C
Max. measuring current:2 mA
Wire length:305 mm
Linearity difference: ± 0.1% of full scale (–40°C to +125°C); ±2.% of full scale (–200°C to +540°C)
HEL 705-U-0-12-00
Temperature range:–200 → +260°C
Wire type:PTFE
Dimensions (mm):2.18 x 4.75
Resistance at 0°C:1000Ω
Temperature coefficient:α= 0.00375 Ω/Ω/°C
Max. measuring current:2 mA
Wire length:305 mm
Linearity difference: ± 0.1% of full scale (–40°C to +125°C); ±2.% of full scale (–200°C to +540°C)
Probes
Specifications
Sensor TypePT1000Probe Length2.18mmMinimum Temperature Sensed-75°CMaximum Temperature Sensed+540°CTermination TypeLead WireCable Length305mmNumber Of Wires2Accuracy±0.2 °CResponse Time0.15 s
To view the Data Sheet please Click Here
