1 x Honeywell 2455RP 9100-444 F70C NC 10A Thermostat, Opens at +100°C - Honeywell
roll over the image to zoom in
£0.00
£14.99
RS 339-314A
Unit Quantity:
1
Unit Type:
Unit
Location:
ES-12F
Honeywell
Honeywell NC 10 A Thermostat, Opens at+100°C
- RS Stock No.339-314A
- Mfr. Part No.2455R 82-191 L100C
- Brand
Product Details

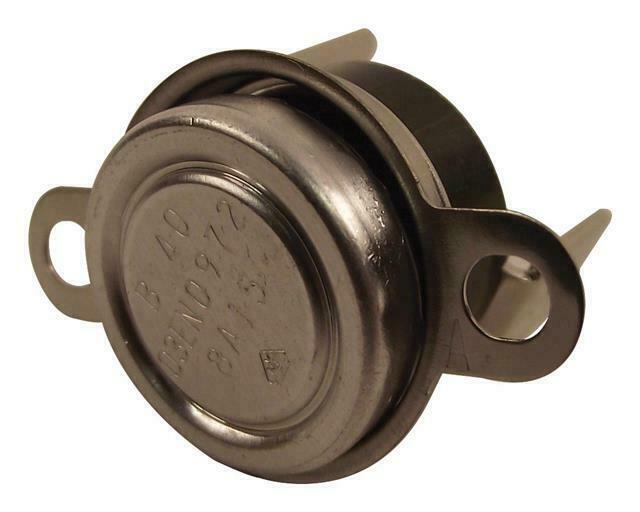

Bi-Metallic Thermostat
Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.
Approvals
UL recognised component, CSA Certified
Thermal Switches
Specifications
| Attribute | Value |
|---|---|
| Opening Temperature | +100°C |
| Switch Configuration | NC |
| Contact Rating | 10 A |
| Contact Voltage Rating | 250 V ac |
| Terminal Type | Quick Connect |
