1 x Global Laser 5002-23, Continuous Wave Laser Module +3.5-+5V - Global Laser

roll over the image to zoom in

£0.00
£284.99
RS 488-1443
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 28A


    Global Laser

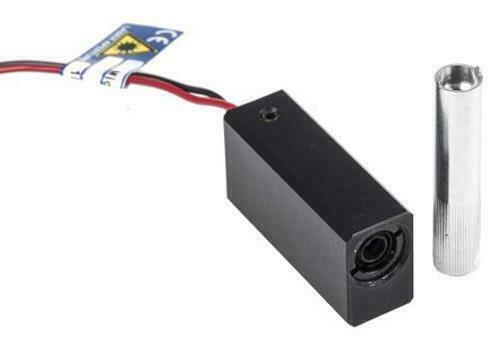

    Global Laser 5002-23 Laser Module, 635nm 1mW, Continuous Wave Cross Lines pattern +3.5 → +5 V


    • BMUK Part # :-488-1443
    • BrandGlobal Laser
    • Mfr. Part No.5002-23
    •
    •
    • You will get 1 Laser Module






    Product Details

    Cross Generator 635nm

    Produces two adjustable-angle intersecting lines
    Adjustable focus range: 50mm to infinity
    Rugged construction
    Size: 11mm dia x 37mm
    Reverse polarity protection


    Laser Modules, Global Laser


    Warning

    • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
    Specifications


    		Laser TypeContinuous Wave

    		Emission PatternCross Lines

    		Laser Wavelength635nm

    		Optical Output Power1mW

    		Dimensions11 Dia. x 37mm

    		Diameter11mm

    		Length37mm

    		Maximum Supply Voltage+5V

    		Minimum Supply Voltage+3.5V

    		Supply Voltage Range+3.5 → +5 V



    For a Specification PDF Please CLICK HERE
