1 x Fuji 1MBI1600U4C-120, M151 N-Channel IGBT Module 1600A Max 1200V Screw Mount - Fuji

roll over the image to zoom in


£0.00
£762.95

RS 761-3445
Earn0
reward points

In stock: 4

Sorry! We're out of stock


    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS MIDDLE ISLE


    Fuji

    Fuji 1MBI1600U4C-120, M151 , N-Channel IGBT Module, 1600A max, 1200 V, Screw Mount


    • BMUK Stock No.761-3445
    • Brand
    • Mfr Part No.1MBI1600U4C-120
    •
    • You will get ONE IGBT

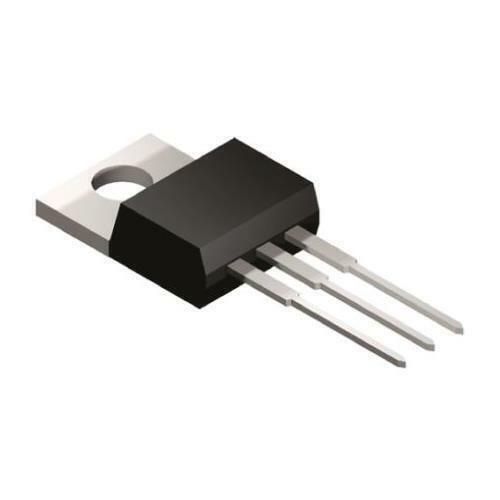

    Image representative of range only



    Product Details

    IGBT Modules 1-Pack, Fuji Electric

    V-Series, 6th Generation Field-Stop
    U/U4 Series, 5th Generation Field-Stop
    HH Series, Planar-NPT High-Speed Chooper IGBTs




    IGBT Discretes & Modules, Fuji Electric

    The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.

    Specifications

    Maximum Operating Temperature
    +150 °C
    Length
    140mm
    Brand
    Fuji
    Maximum Collector Emitter Voltage
    1200 V
    Maximum Continuous Collector Current
    1.6 kA
    Package Type
    M151
    Maximum Power Dissipation
    4.96 kW
    Mounting Type
    Screw Mount
    Width
    130mm
    Height
    38mm
    Pin Count
    4
    Dimensions
    140 x 130 x 38mm
    Configuration
    Single
    Maximum Gate Emitter Voltage
    ±20V
    Channel Type
    N

    TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length






    Product Details

    DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

    Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.


    Features and Benefits
    • Offers excellent protection and insulation
    • Provides strain relief
    • Performs well under long-term heat exposure
    • The tubing is printed with the product description and size
    • Shrink ratio of 2:1
    • Use with System 25 range products for a complete cable harness system

    Standards

    VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.





    High Temperature



    Add product to Compare


    Specifications

    Not what you’re looking for? Select the attributes you require, then click the button below

    Sleeve Diameter9.5mm

    Shrunk Diameter4.8mm

    ColourBlack

    Sleeve TypeHeat Shrink

    Shrink Ratio2:1

    Sleeve Length10m

    MaterialElastomer

    Minimum Operating Temperature-75°C

    Maximum Operating Temperature+150°C

    Dielectric Strength8kV/mm

    Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC


    • BMUK Part # :-761-7627
    • BrandMicrochip
    • Mfr. Part No.MCP7940M-I/SN





    Product Details

    MCP7940M I²C Real-Time Clock/Calendars

    The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

    The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



    Features

    2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
    On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
    Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
    Leap Year Compensated to 2399
    12/24 Hour Modes
    Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
    Dual Programmable Alarms
    Versatile Output Pin
    Wide Operating Voltage Range: 1.8V to 5.5V
    Low Typical Timekeeping Current: 1.2μA at 3.3V




    Real Time Clock Peripherals - Microchip



    Add product to Compare


    Specifications

    Not what you’re looking for? Select the attributes you require, then click the button below

    FunctionsCalendar, NV SRAM

    Date FormatDW:DM:M:Y

    Time FormatHH:MM:SS

    User RAM64B

    Bus TypeSerial-I2C

    Mounting TypeSurface Mount

    Package TypeSOIC

    Pin Count8

    Dimensions4.9 x 3.9 x 1.25mm

    Length4.9mm

    Width3.9mm

    Height1.25mm

    Maximum Operating Supply Voltage5.5 V

    Minimum Operating Supply Voltage1.8 V

    Maximum Operating Temperature+85 °C

    Minimum Operating Temperature-40 °C
