1 x Flush Yellow LED Indicator 6-36VDC 14mm Panel Mount 10mm LED Area Solder Tab - RS Pro
roll over the image to zoom in
£0.00
£10.99
RS 703-9061
Location:
TS 30B
RS Pro

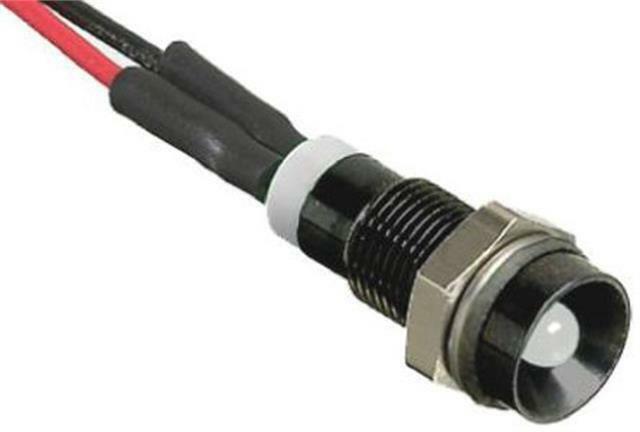

Flush Yellow LED Indicator, 6-36V DC, 14mm Panel Mount, Solder Tab Termination, 10mm Lamp Size
You will get 1 Indicator- BMUK Part # :-703-9061
- BrandRS Pro
Product DetailsLED Indicators, 14mm Mount, 12, 24, 6-36Vdc, Flush Bezel
10mm coloured diffused epoxy lens
Maximum panel thickness 11mm
Solder lug/faston terminals
Sealed to IP67
Approvals
UL
Supplied with
fixing nut, spring washer
14mm Mounting
SpecificationsVoltage Rating 6 → 36 V dc Light Output Colour Yellow Mounting Hole Size 14mm Lamp Size 10 mm Length 35.6 mm Type Panel Mount Lamp Type LED Termination Type Solder Tab Bezel Style Flush Bezel Colour Black Chrome Intensity 4 mcd Current Rating 20 mA
- BMUK Part # :-703-9061
- BrandRS Pro
Product Details
LED Indicators, 14mm Mount, 12, 24, 6-36Vdc, Flush Bezel
10mm coloured diffused epoxy lens
Maximum panel thickness 11mm
Solder lug/faston terminals
Sealed to IP67
Approvals
UL
Supplied with
fixing nut, spring washer
14mm Mounting
Specifications
| Voltage Rating | 6 → 36 V dc | |
| Light Output Colour | Yellow | |
| Mounting Hole Size | 14mm | |
| Lamp Size | 10 mm | |
| Length | 35.6 mm | |
| Type | Panel Mount | |
| Lamp Type | LED | |
| Termination Type | Solder Tab | |
| Bezel Style | Flush | |
| Bezel Colour | Black Chrome | |
| Intensity | 4 mcd | |
| Current Rating | 20 mA |
For a Specification PDF Please Click Here
Thank you for looking, if you have any questions please ask or call us.
Please see our other items for a wide range of Electronic components.
