1 x Fischer Elektronik Heatsink SK 574/84 SA, 4K/W, 84 x 32.3 x 28mm TO-220 247 - Fischer Elektronik

roll over the image to zoom in

£0.00
£6.99
RS 722-6903
Earn0
reward points

In stock: 18

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 52M


    Fischer Elektronik

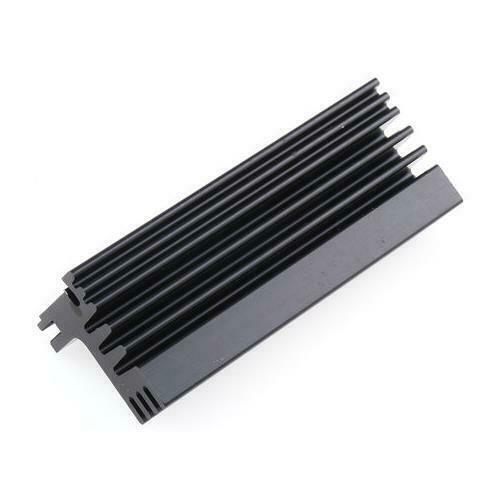

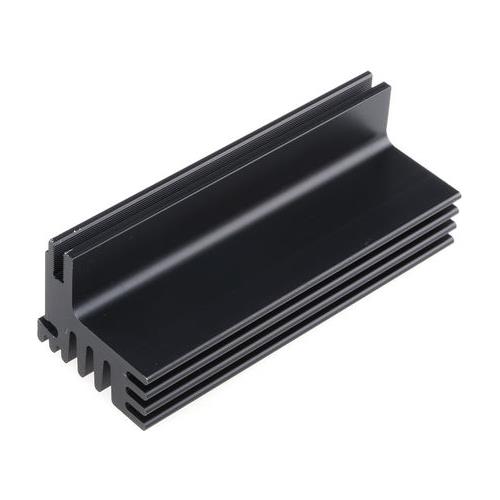

    Fischer Elektronik Heatsink SK 574/84 SA TO-247, TO-220, 4K/W, 84 x 32.3 x 28mm, Clip Mount


    • BMUK Part # :-722-6903
    • BrandFischer Elektronik
    • Mfr. Part No.SK 574/84 SA
    Fischer Elektronik

    You will get 1 Heatsink











    Product Details

    Heat Sink with Retaining Spring

    Black anodized surface finish

    Thermal Resistance - up to 1°C/W

    For the retaining clips for these heatsinks CLICK HERE
    For Thermal Insulating Pads for TO-220 devices CLICK HERE

    Specifications



    		For Use WithTO-220, TO-247

    		Length84mm

    		Width32.3mm

    		Height28mm

    		Dimensions84 x 32.3 x 28mm

    		Thermal Resistance4K/W

    		MountingClip

    		ColorBlack
