1 x Fischer Elektronik Heatsink SK 574/50 SA , 5.5K/W, 50 x 32.3 x 28mm TO-220 - Fischer Elektronik
roll over the image to zoom in
£0.00
£5.99
RS 722-6909
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 37L
Fischer Elektronik

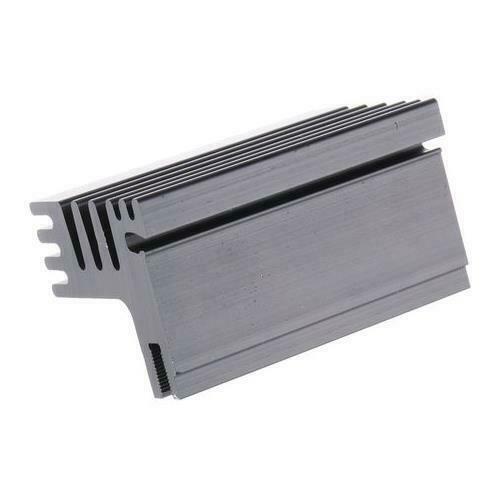

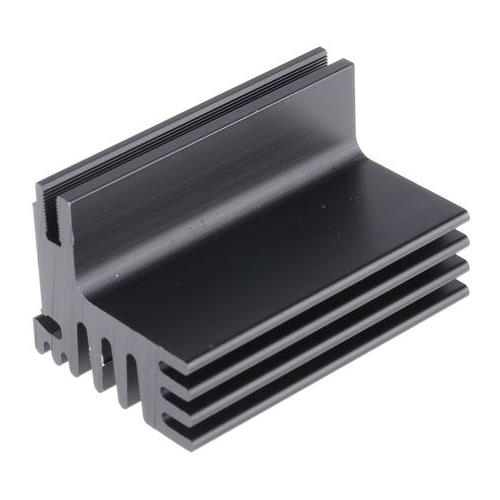

Fischer Elektronik Heatsink SK 574/50 SA TO-247, TO-220, 5.5K/W, 50 x 32.3 x 28mm, Clip Mount
- BMUK Part # :-722-6909
- BrandFischer Elektronik
- Mfr. Part No.SK 574/50 SA
You will get 1 Heatsink
Product Details
Heat Sink with Retaining Spring
Black anodized surface finish
Thermal Resistance - up to 1°C/W
For the retaining clips for these heatsinks CLICK HERE
For Thermal Insulating Pads for TO-220 devices CLICK HERE
Specifications
| For Use With | TO-220, TO-247 | |
| Length | 50mm | |
| Width | 32.3mm | |
| Height | 28mm | |
| Dimensions | 50 x 32.3 x 28mm | |
| Thermal Resistance | 5.5K/W | |
| Mounting | Clip | |
| Color | Black |
