1 x Fairchild HGTG12N60A4, N-channel IGBT Transistor 54A 600V 3-Pin TO247 SMPS - Fairchild Semiconductor

roll over the image to zoom in

£0.00
£9.25
RS 671-5427
Earn0
reward points

In stock: 90

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS BRA-10D


    Fairchild Semiconductor

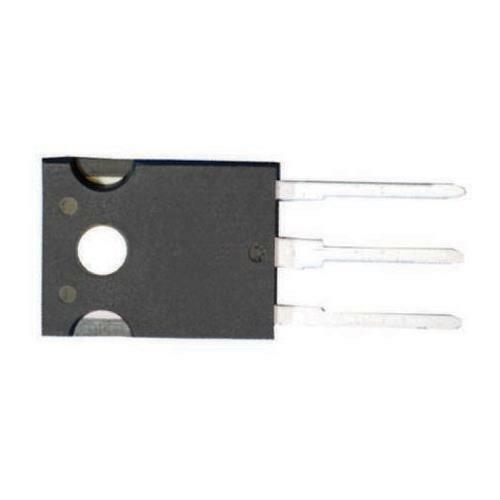

    Fairchild HGTG12N60A4 N-channel IGBT Transistor, 54 A 600 V, 3-Pin TO-247

     You will get ONE Transistor

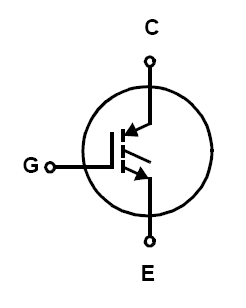

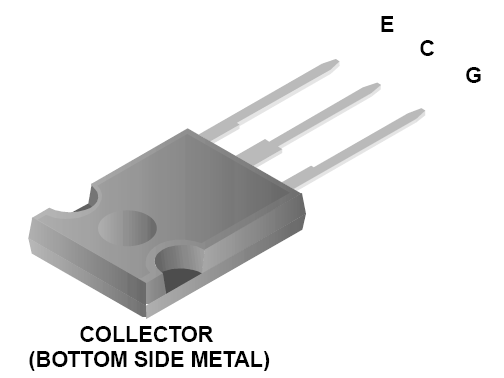

    Fairchild HGTG12N60A4 IGBT, 54 A 600 V, 3-Pin TO-247246937b16b66286fdf616c75c7379c0a.png226399d70a38573c441dca328925c3b2.png




    IGBT Discretes

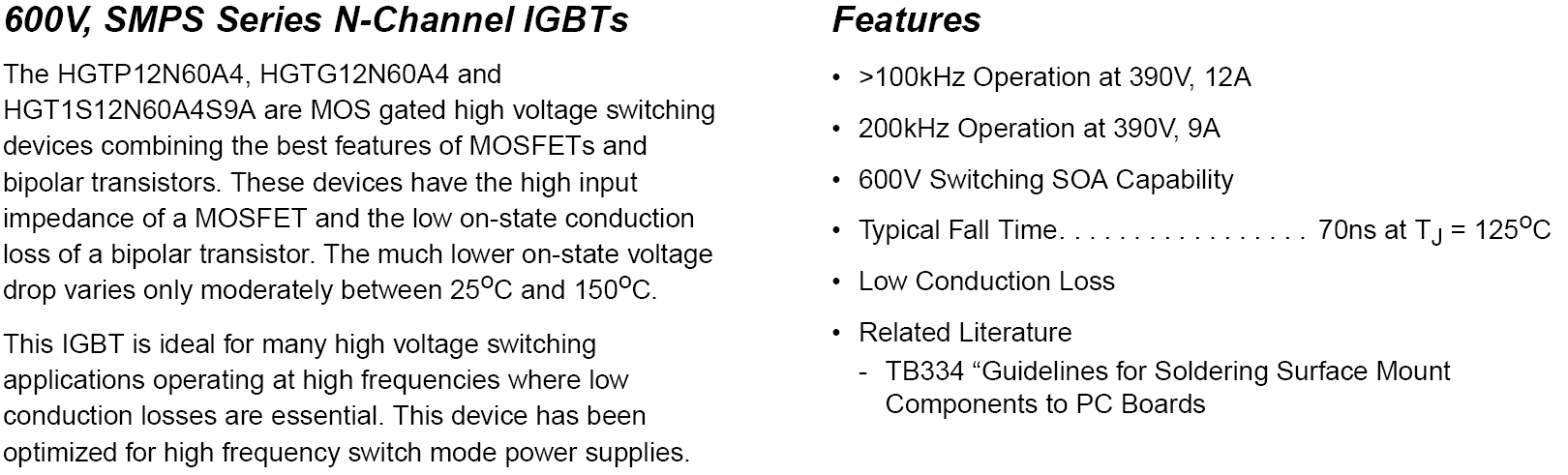

    The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.



    Specifications



    Maximum Operating Temperature
    +150 °C

    Length
    15.87mm

    Brand
    Fairchild Semiconductor

    Maximum Collector Emitter Voltage
    600 V

    Maximum Continuous Collector Current
    54 A

    Package Type
    TO-247

    Mounting Type
    Through Hole

    Minimum Operating Temperature
    -55 °C

    Width
    4.82mm

    Height
    20.82mm

    Pin Count
    3

    Dimensions
    15.87 x 4.82 x 20.82mm

    Maximum Gate Emitter Voltage
    ±20V

    Channel Type
    N

    Stock



    For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.


    Please see our other items for a wide range of Electronic components.
