1 x Cree XREROY-L1-0000-00701, XLamp XR-E Series Blue LED, 465 nm - Cree
roll over the image to zoom in
£0.00
£6.49
RS 376-124
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 12F
Cree

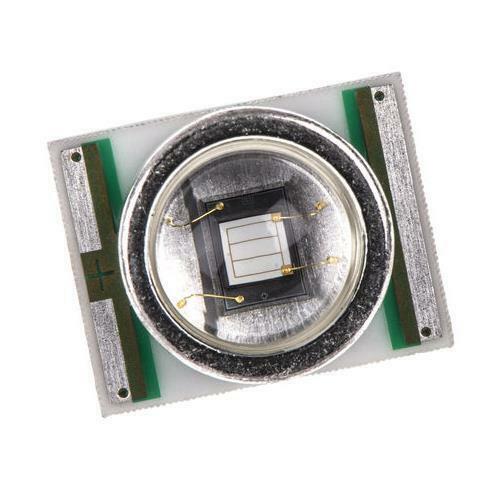

Cree XREROY-L1-0000-00701, XLamp XR-E Series Blue LED, 465 nm, Round Lens SMD package
- BMUK Part # :-376-124
- BrandCree
- Mfr. Part No.XREROY-L1-0000-00701
-
Product Details
Cree XLamp XR-E Series LEDs
The Cree XLamp XR-E is a series of high quality LEDs offering longer lifetime and high efficacy. For use as replacements to many traditional lighting sources, these energy efficient LEDs provide high performance. Ideal applications for the XLamp XR-E discrete LED series include colour-changing lighting, outdoor and indoor lighting, commercial lighting and emergency vehicle lighting.
Viewing angles: 90 to 100°
Drive current: up to 1000mA (maximum)
Junction temperature: 150°C (maximum)
JEDEC standard pre-qualification testing
Electrically neutral thermal path
Visible Light LEDs, Cree Inc
Specifications
| LED Colours | Blue | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 3.9 V | |
| Radiant Flux | 4000mW | |
| Number of Pins | 2 | |
| Viewing Angle | 100 ° | |
| Lens Shape | Round | |
| Dominant Wavelength | 465 nm | |
| Dimensions | 9 x 7mm | |
| Series | XLamp XR-E | |
| Lens Colour | Clear |
For a Specification PDF Please CLICK HERE
