1 x Clairtronic LR701897 PCB Transformer In 230V AC 50/60Hz Out 2 x 9V @ 0.083A - CLAIRTRONIC

roll over the image to zoom in

£0.00
£10.99
CLAIRTRONIC LR701897
Earn0
reward points

In stock: 6

Sorry! We're out of stock

Add To Your Wishlist


    CLAIRTRONIC

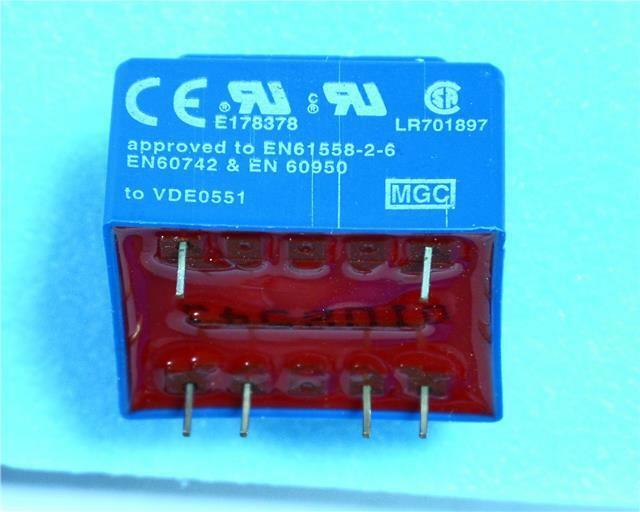

    Clairtronic LR701897 PCB Transformer In 230V AC 50/60Hz Out 2 x 9V @ 0.083A

    You will receive 1 Transformer with 2 Secondary Windings 9 Volts Each

      • BrandCLAIRTRONIC
      • Mfr. Part No.LR701897
      Product Details

      Encapsulated PCB Transformers

      CE Marked and approved to EN61558-2-6

      Pin Spacing 20mm Primary to Secondary side

                             20mm between 0-230V Pins

                             5mm 0-9V output with 10mm between the two secondary windings



      Specifications
      Primary Voltage Rating230V ac
      Secondary Voltage Rating2 x 0 → 9 V AC @ 0.083A
      Power Rating1.5VA
      Mounting TypeSolder, PCB
      Number of Outputs2
      Dimensions32.5 x 27.5 x 21mm
      Secondary Current2 x 0.083A
      ConstructionEncapsulated



























































































    Thank you for looking, if you have any questions please ask a question or call us.

    Please see our other items for a wide range of Electronic components.
