1 x Broyce Control Phase Monitoring Relay, NO/NC Contacts, 3 Phase, 200-450V ac - Broyce Control
roll over the image to zoom in
£0.00
£78.99
RS 321-6854
Unit Quantity:
1
Unit Type:
Unit
Location:
ES-3G
Broyce Control

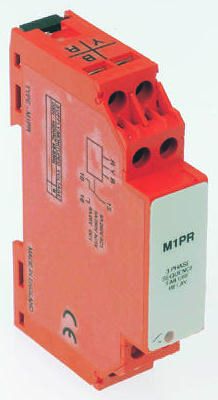

Broyce Control Phase Monitoring Relay with NO/NC Contacts, 3 Phase, 200 → 450 V ac
- BMUK Part # :- 321-6854
- BrandBroyce Control
- Mfr. Part No.M1PR 200-450VAC
-
- You will get 1 Relay
Product Details
Phase Sequence/Failure Relays
Monitoring of 3 phase supplies
Orange housing manufactured to DIN 43 880
DIN rail mount
Specifications
| Monitoring Application | Phase | |
| Supply Voltage | 200 → 450 V ac | |
| Contact Configuration | NO/NC | |
| Electrical Phase | 3 | |
| Phase Sensitivity | Phase Loss, Phase Sequence | |
| Time Delay | 100 ms | |
| Operating Temperature Range | -20 → +60 °C | |
| Length | 59mm | |
| Maximum Operating Temperature | +60°C | |
| Height | 89mm | |
| Dimensions | 59 x 17.5 x 89 mm | |
| Width | 17.5mm | |
| Minimum Operating Temperature | -20°C |
