1 x Broadcom APDS-9004-020 Ambient Light Sensor Unit Surface Mount 4-Pin - Broadcom

roll over the image to zoom in

£0.00
£6.99
RS 714-2735 Reel
Earn0
reward points

In stock: 16

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS-LB 2J


    Broadcom

    Broadcom APDS-9004-020 Ambient Light Sensor Unit Surface Mount 4-Pin


    • BMUK Part Number.714-2735
    • BrandBroadcom
    • Mfr Part No.APDS-9004-020
    •  Broadcom
    •
    • You will get 1 Light Sensor Unit
    Broadcom APDS-9004-020 Ambient Light Sensor Unit Surface Mount 4-Pin











    Product Details

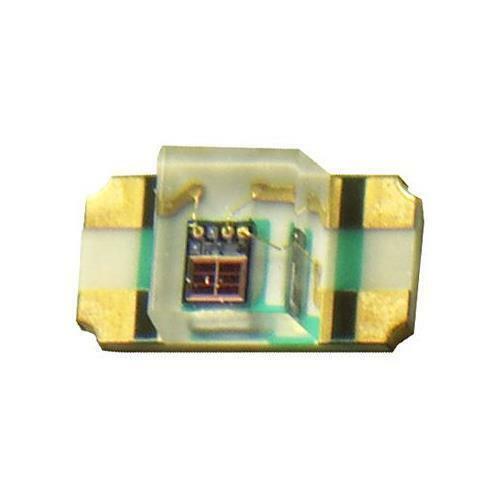

    APDS-9004 Reverse Mount SMD Ambient Light Photosensor

    This analog-output ambient light photosensor is ideal for applications in which the measurement of ambient light is used to control display backlighting e.g. mobile phones, PDAs, notebooks, webpads, TVs, video cameras and digital cameras.






    Ambient Light Sensors, Avago Technologies

    Specifications


    Maximum Wavelength Detected
    600nm
    Typical Rise Time
    0.95ms
    Dimensions
    1.6 x 3.2 x 1.1mm
    Brand
    Broadcom
    Length
    1.6mm
    Application
    Cell Phone, Computer, Digital Camera, PDA, TV, Video Camera
    Height
    1.1mm
    Width
    3.2mm
    Number of Pins
    4
    Mounting Type
    Surface Mount
    Spectral Range of Sensitivity
    Maximum of 600 nm
    Typical Fall Time
    0.8ms
