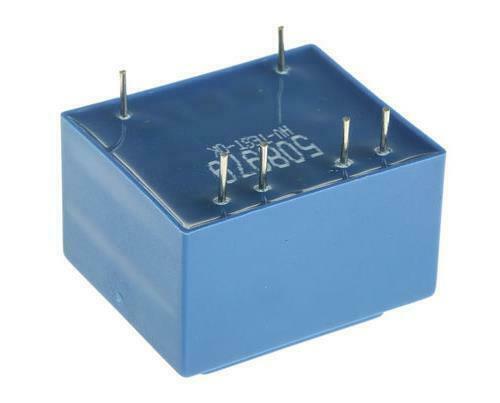

Block VB 1.0/2/8, 8V ac 2 Output Through Hole PCB Transformer, 1VA
- BMUK Part # :-310-1342
- BrandBlock
- Mfr. Part No.VB 1.0/2/8
- You will get 1 PCB Transformer
Product Details
Transformers PCB Mount, Short Circuit Proof, VB & PT Series
230Va.c. 50 to 60Hz primary
Single or twin secondary windings for series or parallel connection (For conformance reasons,0.35 to 3.2VA transformers with 2 x 15 and 2 x 18V outputs and all transformers with 2x 24V outputs should not have their secondaries connected in series as this means they will not meet the VDE 0550 approval)
VB series (0.35 - 3.2VA) are inherently short circuit proof
PT series (4.5 - 22VA) are protected by internal PTC device
Compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
High efficiency and low temperature rise
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure boarding mounting on 4.5VA and above
| Selection Guide (Dual secondary) | |||||||
| VA Rating | Fixing centres (mm) | Pin configuration (mm) | |||||
| C1 | C2 | P1 | S1 | S2 | A | Pin Size | |
| 0.35 | - | - | 15 | 5 | 5 | 15 | 0.6 Ø |
| 0.5 | - | - | 15 | 5 | 5 | 15 | 0.6 Ø |
| 1.0 | - | - | 20 | 10 | 5 | 20 | 0.8 Ø |
| 1.5 | - | - | 20 | 10 | 5 | 20 | 0.8 Ø |
| 2.3 | - | - | 20 | 10 | 5 | 20 | 0.8 Ø |
| 3.2 | - | - | 20 | 10 | 5 | 25 | 0.8 Ø |
| 4.5 | 35 | 28 | 25 | 15 | 5 | 25 | 0.8 Ø |
| 7.5 | 40 | 32 | 25 | 15 | 5 | 27.5 | 0.8 Ø |
| 13 | 47.5 | 37.5 | 30 | 20 | 5 | 30 | 0.8 Ø |
| 22 | 52.5 | 40 | 30 | 10 | 10 | 32.5 | 0.8 Ø |
| Isolation | Primary to Secondary 5kV Secondary to Secondary 250V | |
| Protection | Class 2 | |
| Insulation: | VB Series PT Series | Class B (130°C) Class A (105°C) Class E (120°C) Class A (105°C) |
| Fixing: mechanical fixings can be supplemented on the 4.5 to 22VA transformers by 4 self tapping crews (No-4 x 9.5mm max) using holes mounted in the corners of the case. | ||
| Max Ambient Temperature | 0.35 to 2.3VA +70°C, 3.2VA +50°C, 4.5 to 22VA +40°C |
| Selection Guide (Single secondary) | ||||
| VA Rating | Pin configuration (mm) | |||
| P1 | S1 | A | Pin Size | |
| 0.35 | 15 | 5 | 15 | 0.6 Ø |
| 0.5 | 15 | 5 | 15 | 0.6 Ø |
| 1.0 | 20 | 10 | 20 | 0.6 Ø |
| 1.2 | 20 | 10 | 20 | 0.8 Ø |
| 1.5 | 20 | 10 | 20 | 0.8 Ø |
| 2.0 | 20 | 10 | 20 | 0.8 Ø |
| 2.8 | 20 | 10 | 20 | 0.8 Ø |
| 3.2 | 20 | 10 | 25 | 0.8 Ø |
Approvals
ENEC 10; UL recognised component
Standards
EN 61558
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Secondary Voltage Rating | 8V ac | |
| Power Rating | 1VA | |
| Primary Voltage Rating | 230V ac | |
| Number of Outputs | 2 | |
| Length | 32.3mm | |
| Width | 21.8mm | |
| Depth | 27.3mm | |
| Dimensions | 32.3 x 21.8 x 27.3mm | |
| Weight | 72g | |
| Mounting Type | Through Hole | |
| Maximum Temperature | +70°C | |
| CAD Drawing | 3D CAD Model |
