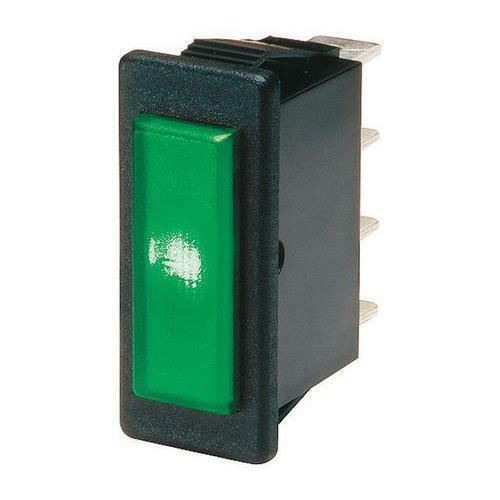

Maintenance Timer

Monitors accumulated usage time and indicates when preventative maintenance should be carried out. The indicator shows continuous Green while power is applied, and the accumulated operating time (hours run) is monitored and stored in non-volatile memory. When the number of operating hours exceeds the pre-programmed time limit the LED illumination changes to Flashing Red, clearly indicating that a service or replacement interval has been reached, and that maintenance is required. The indicator can be reset after maintenance operations are completed. Indicators are available with pre-set intervals of 1 week (168 hours), 1 month (672 hours), 3 month (2184 hours), 6 month (4368 hours), 1 year (8736 hours) and 3 years (26208 hours).Typical applications include: component end of life indication; de-scale/decalcification interval; filter cleaning/replacement interval; machinery – lubrication, belt change; petrol/diesel engines – oil change, servicing; equipment calibration interval reminder; visual inspection & cleaning reminder.

Remembers accumulated time if power switched off
Timer can be reset to zero
Direct replacement for lamp/neon indicator
Body Nylon 6.6, matt finish, black
Lens clear polycarbonate, softline matt finish
Convenient snap-in design
Industry standard cut-out 30 x 11mm, bezel 32 x 14mm
Fast-on 6.3mm tab terminals
Terminals copper alloy, silver plated
Operating conditions (body) -20°C to +70°C, 0 to 95% RH (non-condensing)
Power consumption less than 1W

LED Panel Indicators - Intelligent
