1 x Arcol Aluminium Wire Wound Resistor HS100 1R5 J, 1.5Ω ±5% 100W - Arcol
£0.00
£11.99
RS 252-2906
Unit Quantity:
1
Unit Type:
Unit
Location:
TS-ES 9F
Arcol

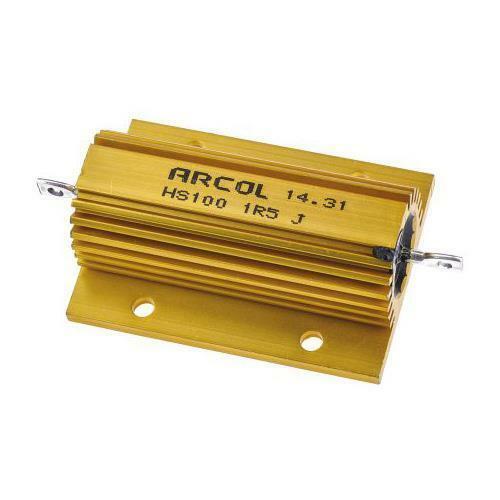

Arcol HS100 Series Aluminium Housed Axial Wire Wound Panel Mount Resistor, 1.5Ω ±5% 100W
- BMUK Part # :-252-2906
- BrandArcol
- Mfr. Part No.HS100 1R5 J
- You will get 1 Resistor
Product Details
100W Aluminium housed wirewound power resistor, HS Series
100Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant. HS Series of high power, aluminium housed resistors offers an unequalled balance of pulse power capability versus volume. An advanced design optimises stability, linearity and reliability, making the HS Resistors suitable for many applications.
Features
Compact size for Power ratingWinding construction maximises High Pulse Capability
Applications
Braking resistorInrush limiter
Inverter/converter
Snubber
Balancing resistor
Power At 25°C | 100W with 1.0°C/W Heatsink, 50W without Heatsink |
Resistance Tolerance | ±5% |
Temperature Coefficient | <1KΩ ±100ppm/°C,>1KΩ ±25ppm/°C |
Operating Temperature | -55°C → +200°C |
Limiting Element Voltage | 1900Vdc/Vac (rms) |
Insulating Resistance | 10000MΩ |
Length | 88 mm |
Width | 47.5 mm |
Height | 24.1 mm |
Weight | 115 g |
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
Aluminium Housed, Wirewound - 5 to 600W
Specifications
Resistance | 1.5 Ω | |
Power Rating | 100W | |
Series | HS100 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Axial | |
Minimum Temperature Coefficient | -100ppm/°C | |
Maximum Temperature Coefficient | +100ppm/°C | |
Temperature Coefficient | ±100ppm/°C | |
Overall Width | 47.5mm | |
Overall Length | 88mm | |
Overall Height | 24.1mm | |
Dimensions | 24.1 x 88 x 47.5mm |
To view the datasheet please Click Here
