1 x Analog Devices AD8608ARUZ-REEL, Quad Precision Op Amp 10MHz, 2.7-5.5V - Analog Devices
roll over the image to zoom in
£0.00
£7.99
RS 759-1354
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 51B
Analog Devices

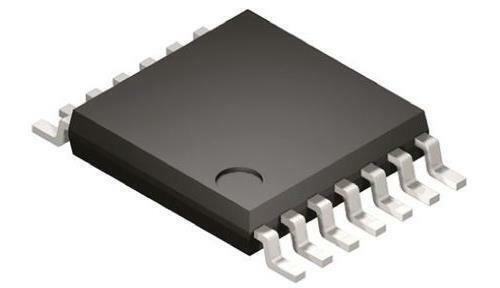

Analog Devices AD8608ARUZ-REEL, Quad Precision Op Amp, 10MHz Rail-Rail, 2.7 → 5.5 V, 14-Pin TSSOP
- BMUK Part # :-759-1354
- BrandAnalog Devices
- Mfr. Part No.AD8608ARUZ-REEL
-
- You will get 1 Op Amp
Product Details
Quad Precision Op Amps, Analog Devices
This quad precision operational amplifier is economic in both its physical space-saving and power consumption, and with a very low bias current and low supply current it is ideal for battery-powered systems. This op amp is suitable for a variety of applications, such as instrument amplifiers and peak detectors.
Operational Amplifiers, Analog Devices
Specifications
| Amplifier Type | Precision | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 2.7 → 5.5 V | |
| Typical Gain Bandwidth Product | 10MHz | |
| Output Type | Rail to Rail | |
| Typical Slew Rate | 5V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Height | 1.05mm | |
| Width | 4.5mm | |
| Typical Voltage Gain | 1000 V/mV | |
| Length | 5.1mm | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Typical Input Voltage Noise Density | 8nV/√Hz |
