1 x Analog AD2S82AJPZ, Resolver to Digital Converter 16bit- Parallel, 44-Pin - Analog Devices
roll over the image to zoom in
£0.00
£179.99
RS 709-4695
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 57P
Analog Devices
AD2S82AJPZ, Resolver to Digital Converter 16 bit- Parallel 16.25 rps, 44-Pin PLCC
- BMUK Part # :-709-4695
- BrandAnalog Devices
- Mfr. Part No.AD2S82AJPZ
- You will get 1 of

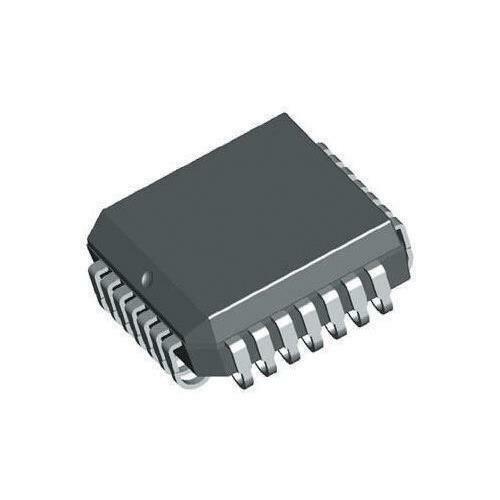

Image representative of range
Product Details
Synchro/Resolver to Digital Converters, Analog Devices
A resolver-to-digital or synchro-to-digital converter is a transducer that converts the angular position and/or velocity of a rotating shaft to a digital output signal. They deliver signals proportional to the sine and/or cosine of the shaft angle and/or velocity.
Analogue to Digital Converters - Analog Devices
Analogue to Digital Converters translate analogue electrical signals for data processing purposes. Analog Devices offers the industry’s largest range of A/D converter products that design engineers depend on for reliable performance in the harshest environments, both on Earth and in space.
Specifications
| Resolution | 16 bit | |
| Accuracy | ±8arcmin | |
| Input Signal Type | Single Ended | |
| Digital Interface Type | Parallel | |
| Typical Tracking Rate | 16.25 rps | |
| Typical Reference Frequency | 20kHz | |
| Velocity Output | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | PLCC | |
| Pin Count | 44 | |
| Power Supply Type | Dual | |
| Typical Dual Supply Voltage | ±12V | |
| Dimensions | 16.66 x 16.66 x 3.68mm | |
| Length | 16.66mm | |
| Width | 16.66mm | |
| Minimum Operating Temperature | -40 °C | |
| Height | 3.68mm | |
| Maximum Operating Temperature | +85 °C |
To view the datasheet please Click Here
