1 x Alps Dual Gang Potentiometer 2x10kΩ Log 6mm Dia. Shaft Stereo Volume Control - Alps

roll over the image to zoom in

£0.00
£10.99
RS 249-9272
Earn0
reward points

In stock: 0

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    Above Packing


    Alps

    Alps Carbon Film Potentiometer RK163 Series with a 6 mm Dia. Shaft 10kΩ ±20% 0.05W, Logarithmic

    The 3D viewer requires the Java Runtime Environment (JRE) and for Java to be enabled on your system.

    Mfr. Part No.RK16312A0BGV

    You will get ONE Dual Gang Potentiometer





    The 3D viewer requires the Java Runtime Environment (JRE) and for Java to be enabled on your system.

    Product Details

    30mm Long Metal Shaft

    Industry standard size
    Robust construction with end slotted metal shaft
    Linear or logarithmic tracks
    Single or dual units
    Excellent performance characteristics
    Operating Temperature -25 to +70°C
    300° rotation
    ±20% tolerance


    Shop Categories

    NEW RELEASES

    FEATURED PRODUCTS

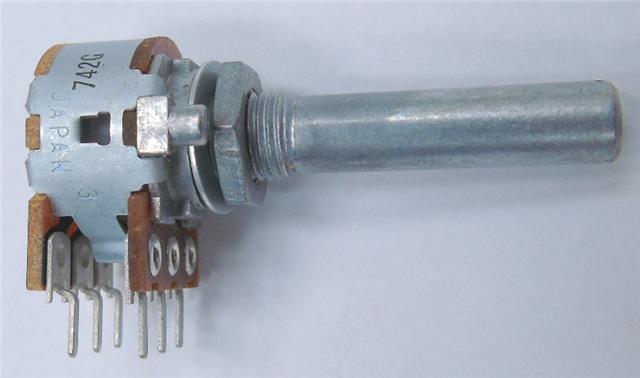

    1 x Alps Dual Gang Potentiometer 2x10kΩ Log 6mm Dia. Shaft Stereo Volume Control
    GetImage.aspx?cid=b71bce07-d0db-49a1-868e-3a930fd7e676&id=4ffe1ce0-d4e0-4663-b8c9-02a76ea01421&num=1

    Dual gang tracking error, -40dB to 0dB      3dB max
    Rotation300°
    Operating temperature-25°C → +70°C
    Body dimensionsØ 16, L.10.5 (single), L.12.1 (dual)
    ShaftØ 6, L.30*
    Mounting bushØ 7.35, L.7
    Power ratingLog tracks 0.05W, Linear tracks 0.1W
    * measurement includes bush

    Supplied with

    Metal nut and washer


    Carbon Track


    Specifications
    Depth15mm
    Dimensions12.1 x 15 x 16mm
    Height16mm
    Length12.1mm
    Maximum Operating Temperature           +70°C
    Maximum Resistance10kΩ
    Minimum Operating Temperature-25°C
    Mounting Hole Diameter7.35mm
    Mounting TypePanel Mount, Through Hole
    Number of Turns1
    Potentiometer TypeLogarithmic
    Power Rating0.05W
    SeriesRK163
    Shaft Diameter6 mm
    Termination StylePin
    Tolerance±20%


    We also stock a 6mm Collet knob, click on the picture to see this item



    Thank you for looking, if you have any questions please ask or call us
