5 x STMicroelectronics STD6N62K3 N-channel MOSFET Transistor, 5.5A, 620V, TO-252

5 x STMicroelectronics STD6N62K3 N-channel MOSFET Transistor, 5.5A, 620V, TO-252
mouse over to zoom +
5 x STMicroelectronics STD6N62K3 N-channel MOSFET Transistor, 5.5A, 620V, TO-252
Price: £6.25
Availability: In Stock
Quantity:

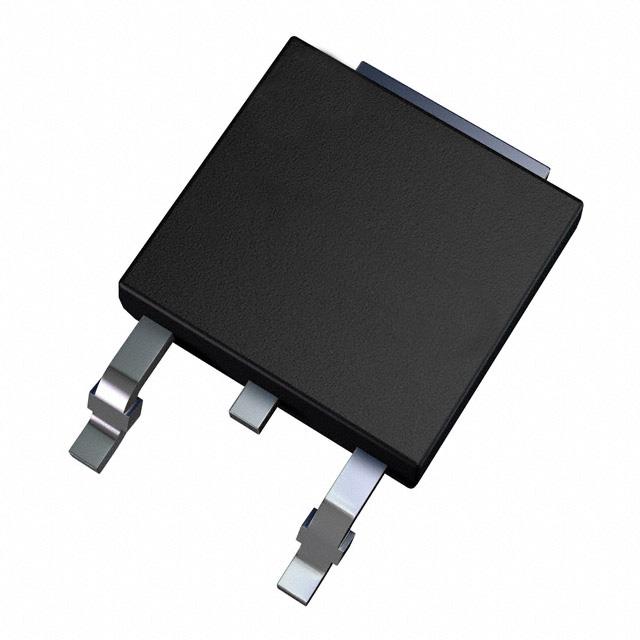

STMicroelectronics STD6N62K3 N-channel MOSFET Transistor, 5.5 A, 620 V, 3-Pin TO-252

You will get 5 MOSFET Transistor in SM Tape, Multi-buys come in 1 length



Specifications

Category Power MOSFET
Channel Mode Enhancement
Channel Type N
Dimensions 6.6 x 6.2 x 2.4mm
Height 2.4mm
Length 6.6mm
Maximum Continuous Drain Current      5.5 A
Maximum Drain Source Resistance 1.2 Ω
Maximum Drain Source Voltage 620 V
Maximum Gate Source Voltage ±30 V
Maximum Operating Temperature +150 °C
Maximum Power Dissipation 90 W
Mounting Type Surface Mount
Number of Elements per Chip 1
Package Type TO-252
Pin Count 3
Typical Gate Charge @ Vgs 34 nC V @ 10
Typical Input Capacitance @ Vds 875 pF V @ 50
Typical Turn-Off Delay Time 49 ns
Typical Turn-On Delay Time 22 ns
Width 6.2mm



For a Specification PDF Please CLICK HERE

Thank you for looking, if you have any questions please ask or ring 01623 720730.
