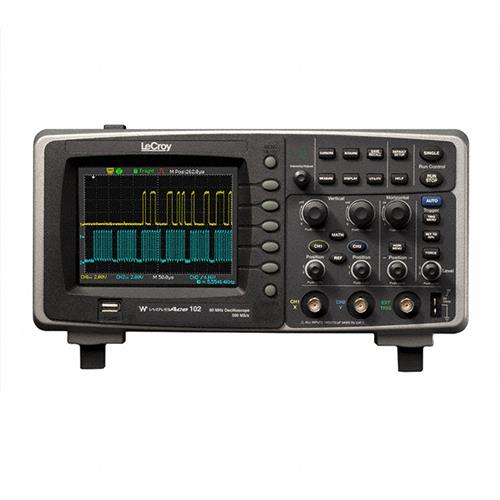

LeCroy WaveAce 102 Digital Storage Oscilloscope, 2 Ch, 60MHz, FFT Measurements

LeCroy WaveAce 102 Digital Storage Oscilloscope, 2 Ch, 60MHz, FFT Measurements
mouse over to zoom +
LeCroy WaveAce 102 Digital Storage Oscilloscope, 2 Ch, 60MHz, FFT Measurements
Price: £599.95
Availability: In Stock
Quantity:

  • BrandLeCroy
  • Mfr. Part No.WaveAce 102
  • LeCroy

Image representative of range
Product Details

LeCroy WaveAce 100 and 200 Series

Dimensions 225 x 265 x 390 mm 2.3kg (2 channel), 225 x 265 x 450 mm 6.5kg (4 channel)
32 standard measurements, upto 4 on screen with waveform or all 32 with no waveform
Edge, Pulse, Width, Video, Slope (Rise Time) and Alternate Triggers
Measure, Math and Wave Recorder functions
USB hot port on the front panel and USB picbridge printer or PC port on the rear
5.7 inch colour, 320 x 240 resolution display

ModelBandwidth (MHz)Rise Time (ns)ChannelsMemory Length (kpts/ch)Timebase Range
101405.8245 ns/div - 50s/div
102605.8245 ns/div - 50s/div
1121003.5245 ns/div - 50s/div
202605.8292.5 ns/div - 50s/div

2121003.5292.5 ns/div - 50s/div
2141003.54102.5 ns/div - 50s/div

2222001.754102.5 ns/div - 50s/div
2323001.2292.5 ns/div - 50s/div
2343001.24102.5 ns/div - 50s/div

Supplied with

1 Passive Probe per channel, Multi-language User Interface and Help, EasyScope PC software with USB cable, Getting Started Manual, Calibration and Perfomance Certificate and a Protective Front Cover (4 channel models only).

Teledyne LeCroy Digital Oscilloscopes

LeCroy Digital Oscilloscopes

Specifications
Bandwidth60MHz
Dimensions305 x 133 x 154mm
Display TypeColour
Height154mm
Length305mm
Maximum Operating Temperature+40°C
Maximum Time Base50s/div
Maximum Vertical Sensitivity5V/div
Minimum Operating Temperature+10°C
Minimum Time Base5ns/div
Minimum Vertical Sensitivity2mV/div
Model Number pWaveAce 102
Number of Channels2
Oscilloscope TypeBench
Power SourceMains
Record Length4k points/ch
Rise Time5.8ns
RS232 InterfaceYes
Sample Rate Random250 Msps
Screen Size5.7in
SeriesWaveAce 100
USB InterfaceYes
Vertical Resolution8 bit
Weight2.3kg
Width133mm


For a Specification PDF Please CLICK HERE

Thank you for looking, if you have any questions please ask or ring 01623 720730.
